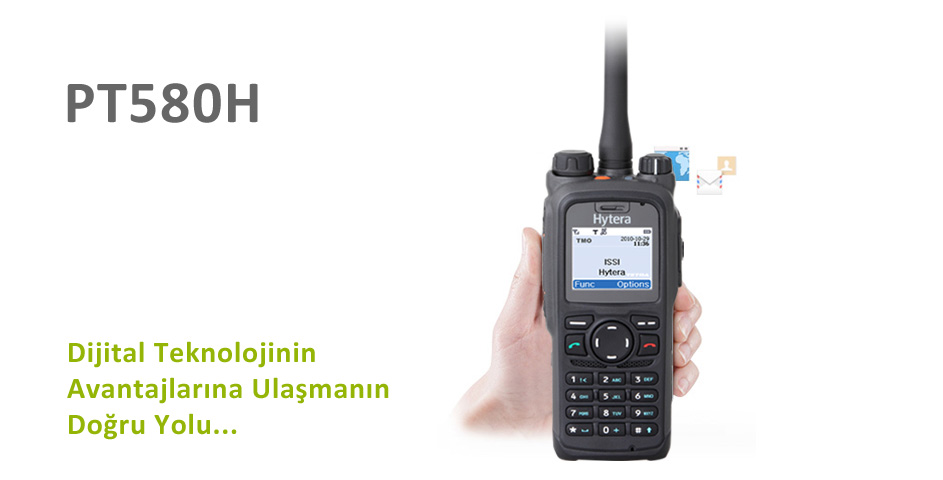

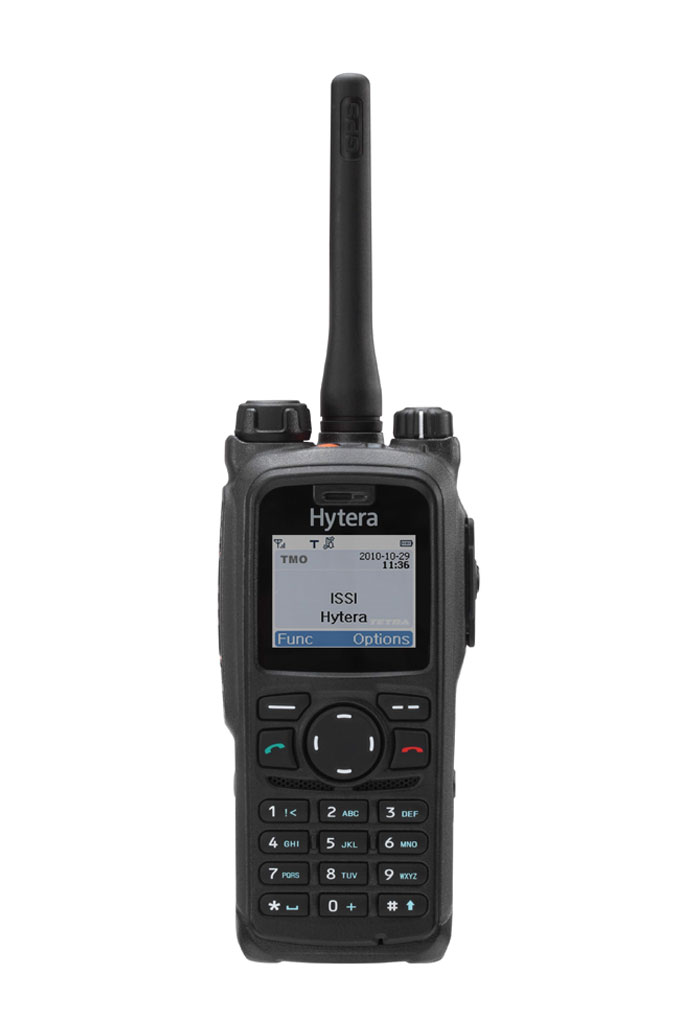

PT580H TETRA Dijital El Telsizi
$ 1.125,00
Açıklama
|
General data
|
|
|
Frequency range
|
350 – 400 MHz / 380 – 430 MHz
410 – 470 MHz / 806 – 870 MHz |
|
Dimensions (HxWxD)
|
127.5 × 54.5 × 35.5 mm
|
|
Weight (without battery and antenna)
|
237 g
|
|
Operating voltage
|
7.4 V
|
|
Battery (Lithium-ion-battery)
|
1800 mAh (standard battery)
2500 mAh (optional high-capacity battery) |
|
Battery service life (5/5/90 duty cycle)
|
> 16 hours (standard battery)
> 22 hours (opt. high-capacity battery) |
|
User interface
|
|
|
Programmable keys
|
20
|
|
LCD display
|
160 x 128 pixels, 65,000 colours, 1.8 inch
|
|
Call groups (TMO)
|
2048
|
|
Call groups (DMO)
|
1024
|
|
Telephone book
|
1000 entries
|
|
Group lists (used for scanning, scan lists)
|
64 (200 groups per list)
|
|
Ambient data
|
|
|
Operating temperature range
|
-25 °C to +65 °C
|
|
Storage temperature range
|
-40 °C to +85 °C
|
|
Relative humidity
|
ETS 300 019 (95%)
|
|
Protection against dust and moisture
|
IEC60529 IP67
|
|
Shock and vibration resistance
|
MIL-STD-810 C/D/E/F/G
|
|
Radio characteristics
|
|
|
Channel spacing
|
25 kHz
|
|
Transmitting power
|
maximally 3 W (settable)
max. 1.8 W at 806 – 870 MHz |
|
Receiver class
|
ETSI EN 392-2 / 396-2 class A
|
|
Static receiver sensitivity
|
-112 dBm (typical -116 dBm)
|
|
Dynamic receiver sensitivity
|
-103 dBm (typical -105 dBm)
|
|
GPS
|
|
|
Sensitivity
|
≤ -138 dBm receiving sensitivity
≤ -154 dBm signal tracking sensitivity |
|
Time to first fix (TTFF) cold start
|
< 50s
|
|
Time to first fix (TTFF) warm start
|
< 10s
|
