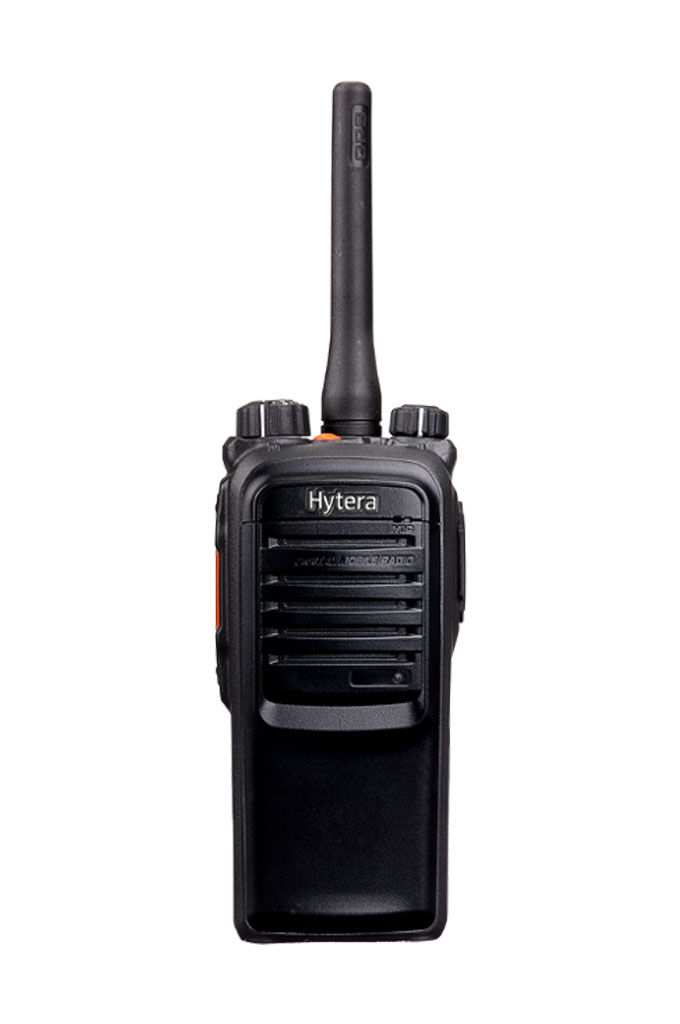

PD705 DMR UHF Dijital El Telsizi
$ 450,00
Açıklama
|
General data
|
|
|
Frequency range
|
VHF: 136 – 174 MHz
UHF: 400 – 470 MHz |
|
Supported operation modes
|
DMR Tier II in reference to ETSI TS 102 361-1/2/3 |
|
Channel capacity
|
1024
|
|
Number of zones
|
16
|
|
Channel spacing (analog)
|
12.5 / 20 / 25 kHz
|
|
Channel spacing (digital)
|
12.5 kHz
|
|
Operating voltage
|
7.4 V (nominal)
|
|
Standard battery
|
2000 mAh (lithium-ion battery)
|
|
Battery service life (analog)
(5-5-90 duty cycle, high transmitting power, standard battery) |
VHF: approx. 11 hours / 10 hours (GPS mode)
UHF: approx. 13.5 hours / 12 hours (GPS mode) |
|
Battery service life (digital)
(5-5-90 duty cycle, high transmitting power, standard battery) |
VHF: approx. 13.5 hours / 12 hours (GPS mode)
UHF: approx. 15.5 hours / 14 hours (GPS mode) |
|
Frequency stability
|
±1.5 ppm
|
|
Antenna impedance
|
50 Ω
|
|
Dimensions (H×W×D)
(with standard battery, without antenna) |
125 x 55 x 35 mm
|
|
Weight (with antenna and standard battery)
|
335 g
|
|
Transmitter
|
|
|
Transmitting power
|
VHF: 1 / 5 W
UHF: 1 / 4 W |
|
Modulation
|
11 K0F3E at 12.5 kHz
14 K0F3E at 20 kHz 16 K0F3E at 25 kHz |
|
4FSK digital modulation
|
12.5 kHz (data only): 7K60FXD
12.5 kHz (data and voice): 7K60FXW |
|
Interfering signals and harmonics
|
-36 dBm < 1 GHz
-30 dBm > 1 GHz |
|
Modulation limiting
|
±2.5 kHz at 12.5 kHz
±4.0 kHz at 20 kHz ±5.0 kHz at 25 kHz |
|
Noise suppression
|
40 dB at 12.5 kHz
43 dB at 20 kHz 45 dB at 25 kHz |
|
Adjacent channel selectivity
|
60 dB at 12.5 kHz
70 dB at 20/25 kHz |
|
Audio sensitivity
|
+1 dB to -3 dB
|
|
Nominal audio distortion
|
≤ 3%
|
|
Digital vocoder type
|
AMBE+2™
|
|
Receiver
|
|
|
Sensitivity (analog)
|
0.3 μV (12 dB SINAD)
0.22 μV (typical) (12 dB SINAD) 0.4 μV (20 dB SINAD) |
|
Sensitivity (digital)
|
0.3 μV / BER 5%
|
|
Selectivity
TIA-603 ETSI |
60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz
60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz |
|
Intermodulation
TIA-603 ETSI |
70 dB at 12.5/20/25 kHz
65 dB at 12.5/20/25 kHz |
|
Spurious response rejection
TIA-603 ETSI |
70 dB at 12.5/20/25 kHz
70 dB at 12.5/20/25 kHz |
|
Hum and noise
|
40 dB at 12.5 kHz
43 dB at 20 kHz 45 dB at 25 kHz |
|
Nominal audio power output
|
0.5 W
|
|
Nominal audio distortion
|
≤ 3 %
|
|
Audio sensitivity
|
+1 dB to -3 dB
|
|
Conducted spurious emission
|
< -57 dBm
|
|
Ambient data
|
|
|
Operating temperature range
|
-30 °C to +60 °C
|
|
Storage temperature range
|
-40 °C to +85 °C
|
|
ESD
|
IEC 61000-4-2 (level 4)
±8 kV (contact discharge) ±15 kV (air discharge) |
|
Protection against dust and moisture
|
IP67
|
|
Shock and vibration resistance
|
MIL-STD-810 C/D/E/F/G
|
|
Relative humidity
|
MIL-STD-810 C/D/E/F/G
|
|
GPS (PD705G only)
|
|
|
Time to first fix (TTFF) cold start
|
< 1 minute
|
|
Time to first fix (TTFF) warm start
|
< 10 seconds
|
|
Horizontal accuracy
|
< 10 meters
|
|
All technical information was determined at the factory and in accordance with the corresponding standards. Subject to change on the basis of continuous development.
|
|
