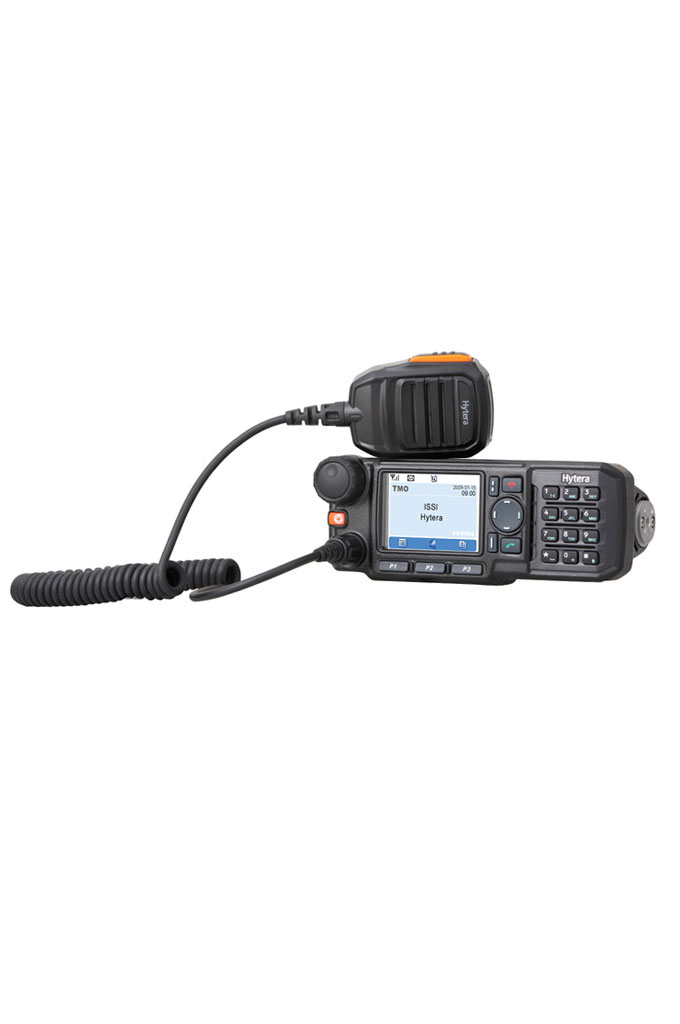

MT680 TETRA Dijital Araç Telsizi
$ 1.440,00
Açıklama
MT680 TETRA Dijital Araç Telsizi
General Data
|
|
Frequency range
|
350 – 400 MHz / 380 – 430 MHz
410 – 470 MHz / 806 – 870 MHz |
Dimensions (H×W×D, with front panel)
|
70 × 184 × 201 mm
|
Weight (with front panel)
|
1.9 kg
|
Operating voltage
|
10.8 – 15.6 V (Norm 13.2 V)
|
Call groups (TMO)
|
2048
|
Call groups (DMO)
|
1024
|
Telephone book
|
1000 entries
|
Group lists (used for scanning, scan lists)
|
64 (200 groups per list)
|
LCD display
|
320 x 240 pixels, 260.000 colours, 2.8 inch
|
Audio power output
|
4 W (internal), 10 W (external, optional)
|
Ambient data
|
|
Operating temperature range
|
-25 ℃ to +65 ℃
|
Storage temperature range
|
-40 ℃ to +85 ℃
|
Relative humidity
|
ETS 300 019 (95 %)
|
Protection against dust and moisture
|
IP54 (main unit); IP67 (front panel)
IEC60529 or GB-4208-93 |
Shock and vibration resistance
|
MIL-STD-810 F / G
|
Radio characteristics
|
|
Channel spacing
|
25 kHz
|
Transmitting power
|
maximally 10 W (settable)
|
Receiver class
|
ETSI EN 392-2/396-2 Class A
|
Static receiver sensitivity
|
-112 dBm (typical -116 dBm)
|
Dynamic receiver sensitivity
|
-103 dBm (typical-105 dBm)
|
GPS
|
|
GPS antenna
|
external antenna
|
Sensitivity
|
≤ -154 dBm
|
