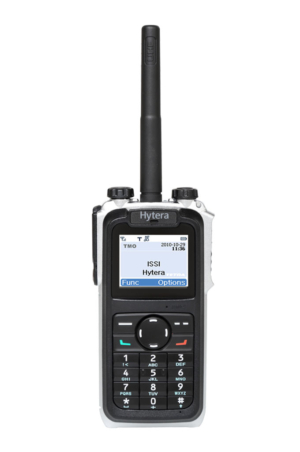

Z1P TETRA Dijital El Telsizi

$ 1.440,00

z1p2

Kategoriler: , Etiketler: , , ,

Açıklama

General data
Frequency ranges
380 – 430 MHz / 410 – 470 MHz* / 806 – 870 MHz*
Dimensions (H × W × D)
120 × 58 × 23 mm (with standard battery)
Weight (with battery)
approx. 260 g (with 1100 mAh battery)
approx. 270 g (with 1400 mAh battery)
approx. 290 g (with 1800 mAh battery)
Operating voltage
7.4 V
Battery (lithium-ion battery)
1400 mAh (standard battery),
1100 mAh or 1800 mAh (optional)
Battery service life (Battery service life)
(5-5-90 duty cycle)
> 13,5 hours (standard battery)
> 10,5 hours (with 1100 mAh)
> 17 hours (with 1800 mAh)
Programmable keys
18
LCD color display
1.8 inch, 160 × 128 pixel, 65,536 colors
Call groups – TMO
3000
Call groups – DMO
2000
Phone book
1000 entries
Group lists – TMO (used for scanning, scan lists)
200 (200 groups per list)
Group lists – DMO
50 (200 groups per list)
Environmental conditions
Operating temperature range
-30 °C to +60 °C
Storage temperature range
-40 °C to +85 °C
Relative humidity
ETS 300 019 (95 %)
Protection against dust and moisture
IEC60529, IP67
Shock and vibration resistance
MIL-STD-810 G
Radio characteristics
Channel spacing
25 kHz
Transmitting power
Up to 3 W (adjustable) /
max. 1.8 W at 806 – 870 MHz
RF power level accuracy
±2 dB
RF power control
4 steps of 5 dB
Receiver class
ETSI EN 392-2 / 396-2 class A & B
Static receiver sensitivity
-112 dBm (typical -116 dBm)
Dynamic receiver sensitivity
-103 dBm (typical -105 dBm)
Maximum audio power output
1.5 W
GPS data
Sensitivity
≤ -148 dBm receiving sensitivity;
≤ -162 dBm signal tracking sensitivity
Accuracy
≤ 2.5 m
Time to first fix (TTFF) cold start-up
< 26 s
Time to first fix (TTFF) warm start
< 1 s
