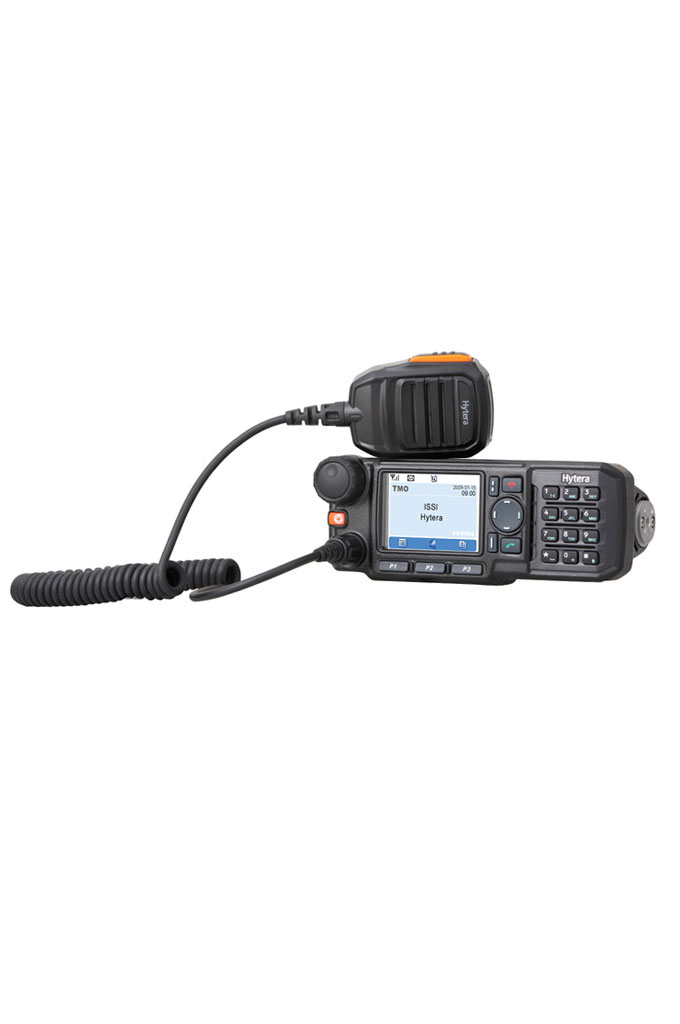

MT680 TETRA Dijital Araç Telsizi

Ana Sayfa|Telsizler, TETRA|MT680 TETRA Dijital Araç Telsizi

MT680 TETRA Dijital Araç Telsizi

$ 1.440,00

mt6802

Kategoriler: , Etiketler: , , ,

Açıklama



General Data
Frequency range
350 – 400 MHz / 380 – 430 MHz
410 – 470 MHz / 806 – 870 MHz
Dimensions (H×W×D, with front panel)
70 × 184 × 201 mm
Weight (with front panel)
1.9 kg
Operating voltage
10.8 – 15.6 V (Norm 13.2 V)
Call groups (TMO)
2048
Call groups (DMO)
1024
Telephone book
1000 entries
Group lists (used for scanning, scan lists)
64 (200 groups per list)
LCD display
320 x 240 pixels, 260.000 colours, 2.8 inch
Audio power output
4 W (internal), 10 W (external, optional)
Ambient data
Operating temperature range
-25 ℃ to +65 ℃
Storage temperature range
-40 ℃ to +85 ℃
Relative humidity
ETS 300 019 (95 %)
Protection against dust and moisture
IP54 (main unit); IP67 (front panel)
IEC60529 or GB-4208-93
Shock and vibration resistance
MIL-STD-810 F / G
Radio characteristics
Channel spacing
25 kHz
Transmitting power
maximally 10 W (settable)
Receiver class
ETSI EN 392-2/396-2 Class A
Static receiver sensitivity
-112 dBm (typical -116 dBm)
Dynamic receiver sensitivity
-103 dBm (typical-105 dBm)
GPS
GPS antenna
external antenna
Sensitivity
≤ -154 dBm
